Details
Highlights
- Wide Frequency Range: The JBL Outdoor Loudspeaker offers an impressive frequency range of 80 Hz to 20 kHz (-10 dB) and 100 Hz to 20 kHz (±3 dB) for clear and detailed audio reproduction.
- Spacious Coverage: With a 120° x 120° coverage pattern, this loudspeaker ensures even sound distribution across a wide area.
- High-Quality Drivers: The Kevlar-reinforced LF driver and 25 mm HF driver with fluid-cooling deliver exceptional performance and durability.
- Powerful Sound: The system power rating of 250 W (2 hrs) and 200 W (100 hrs) allows for dynamic sound output.
- Flexible Installation: The loudspeaker is equipped with multiple transformer taps (70V and 100V) for versatile power options and features an included U-bracket for easy mounting.
- Weather-Resistant Construction: Built with ABS and Glass enclosure, the loudspeaker withstands various environmental challenges and exceeds Mil Spec 810 and ASTM G85 standards.
- HF Driver Protection: The SonicGuard™ HF overload protection ensures reliable performance and prevents damage to the HF driver.
- Secure Connectivity: The CE-compliant covered barrier strip terminals provide reliable and water-tight connections for various types of cables and wires.

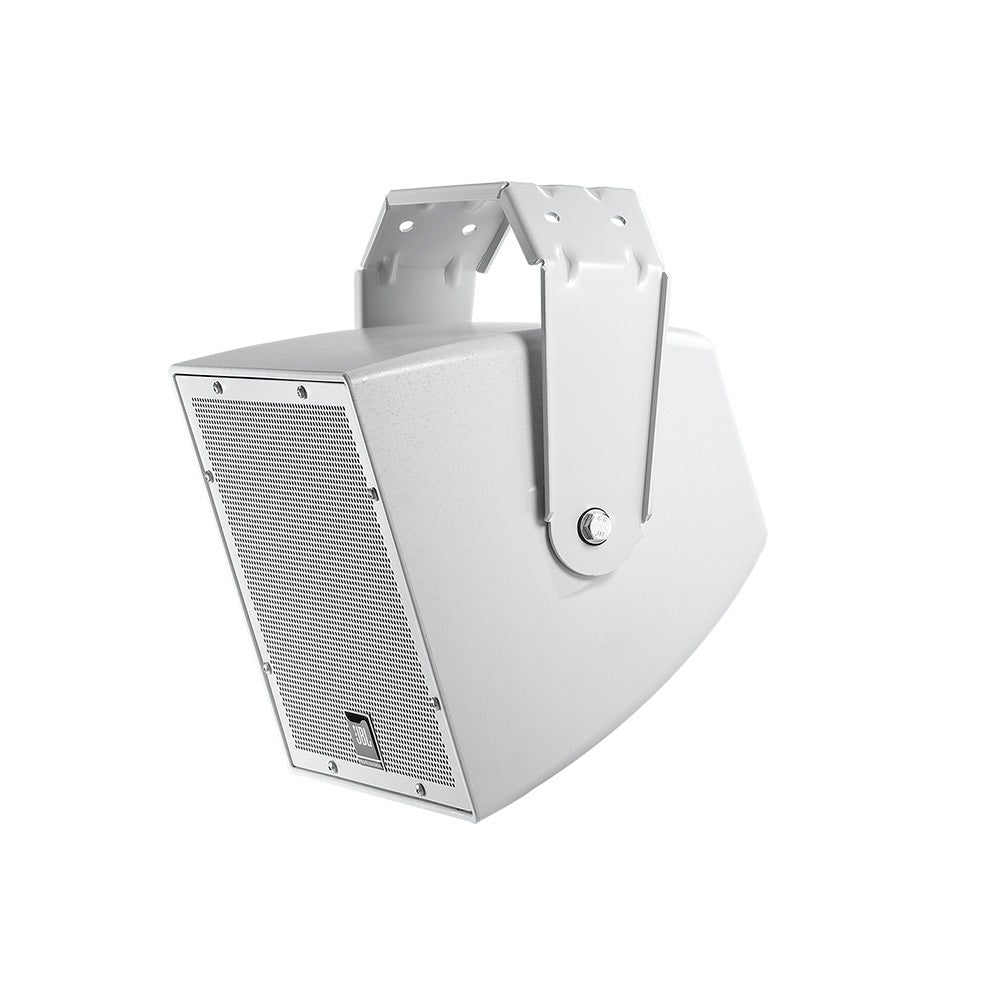

- Elegant Design: Available in gray or black, the loudspeaker features a corrosion-resistant zinc-rich powder-coated steel grille with a foam and woven poly mesh backing.
- Wide Range of Applications: Perfect for outdoor installations in venues, stadiums, theme parks, hotels, and other spaces requiring exceptional outdoor audio.

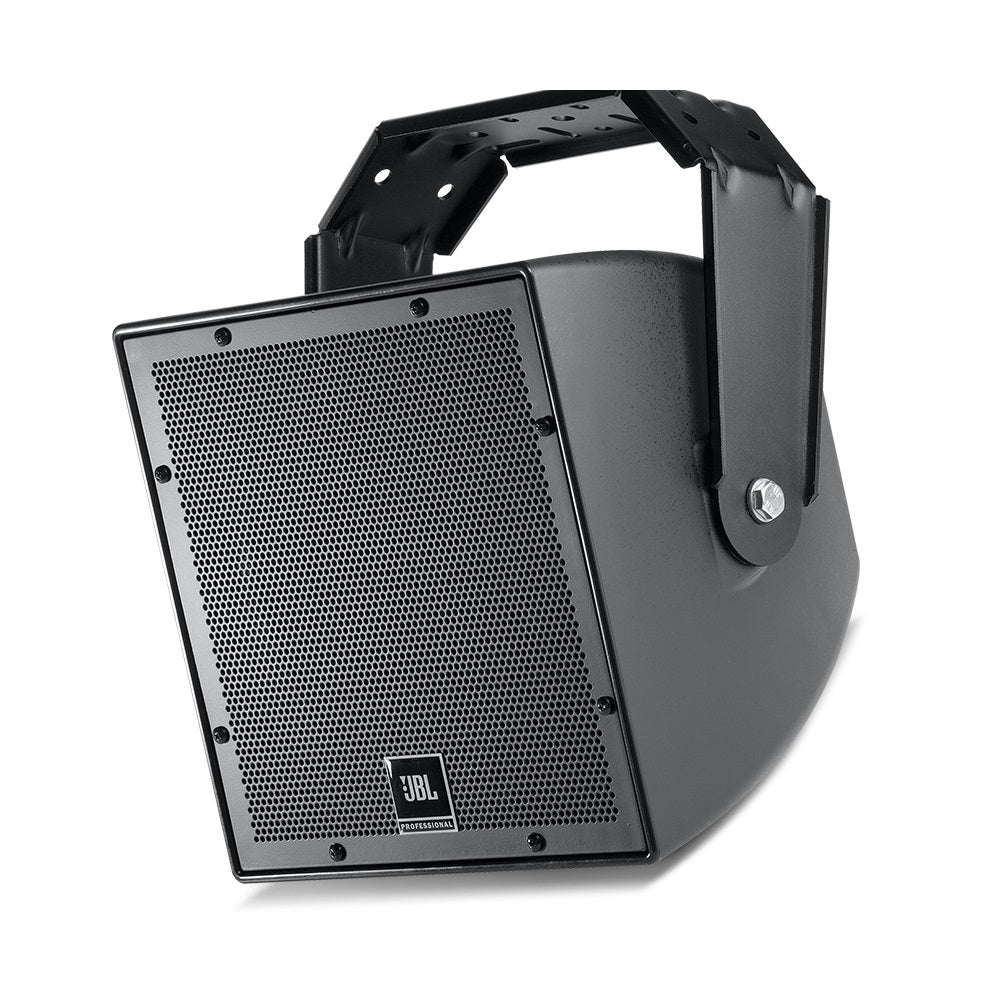

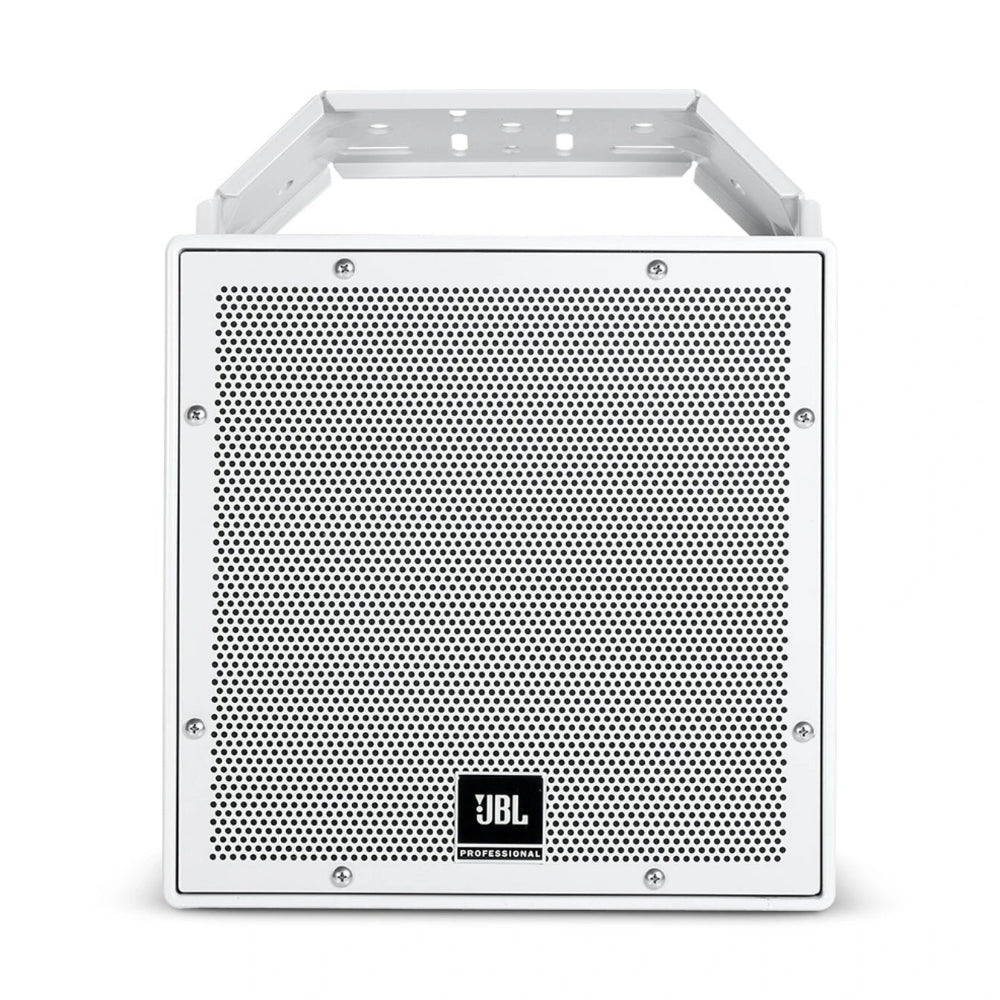

JBL AWC82 All-Weather 8" 2-Way 250W Passive Coaxial Outdoor Loudspeaker (Single)
The JBL AWC82 All-Weather Outdoor Loudspeaker is designed to deliver exceptional sound quality in any outdoor setting. With its durable construction, weather-resistant design, and versatile installation options, this loudspeaker is an excellent choice for enhancing audio experiences in various outdoor environments.
Specifications
| Frequency Range (-10 dB) | 80 Hz – 20 kHz |
| Frequency Response (±3 dB) | 100 Hz – 20 kHz |
| Coverage Pattern | 120° x 120° |
| Directivity Factor (Q) | 8.1 (1 k – 16 kHz) |
| Directivity Index (DI) | 8.4 dB (1 k – 16 kHz) |
| System Power Rating | 250 W (2 hrs), 200 W (100 hrs) |
| Sensitivity (2.83V @ 1m) | 94 dB (Ave. 100 Hz – 20 kHz) |
| Maximum SPL (1m) | Direct 8Ω: 118 dB (peaks of 124 dB) 200 W Tap: 117 dB |
| Crossover Network | 1.8 kHz, 3rd order (18 dB/oct) high-pass plus conjugate to HF, 2nd order low-pass to LF |
| Nominal Impedance | 8 ohms |
| Transformer Taps | 70V: 200W, 100W, 50W, 25W 100V: 200W, 100W, 50W |
| LF Driver | Kevlar-reinforced cone with weather treatment, 50 mm (2 in) voice coil. |
| HF Driver | 25 mm (1 in) diaphragm and voice coil diameter, high temperature polymer diaphragm, patented design, fluid-cooling. |
| HF Driver Protection | Minimum audibility SonicGuard™ HF overload protection |
| Enclosure | ABS with Glass enclosure, heavily braced |
| Attachment |
