Details
Highlights
- Seamless In-Wall Design: The JBL Control C128W is an in-wall speaker that offers exceptional sound without taking up any floor space, blending harmoniously with your interior.
- Wide Frequency Range: Experience an impressive frequency range of 38 Hz to 20 kHz (-10 dB) for clear and detailed audio reproduction.
- Powerful Performance: With a power rating of 200 W Peak, 100 W Continuous Program Power, and 50W Continuous Pink Noise, this in-wall speaker delivers powerful sound for various applications.
- High Sensitivity: The speaker boasts a sensitivity of 90 dB SPL, ensuring efficient sound projection with minimal power.
- Wide Coverage Angle: Enjoy consistent sound dispersion with a coverage angle of 180°H x 160°V, providing even audio distribution throughout the room.

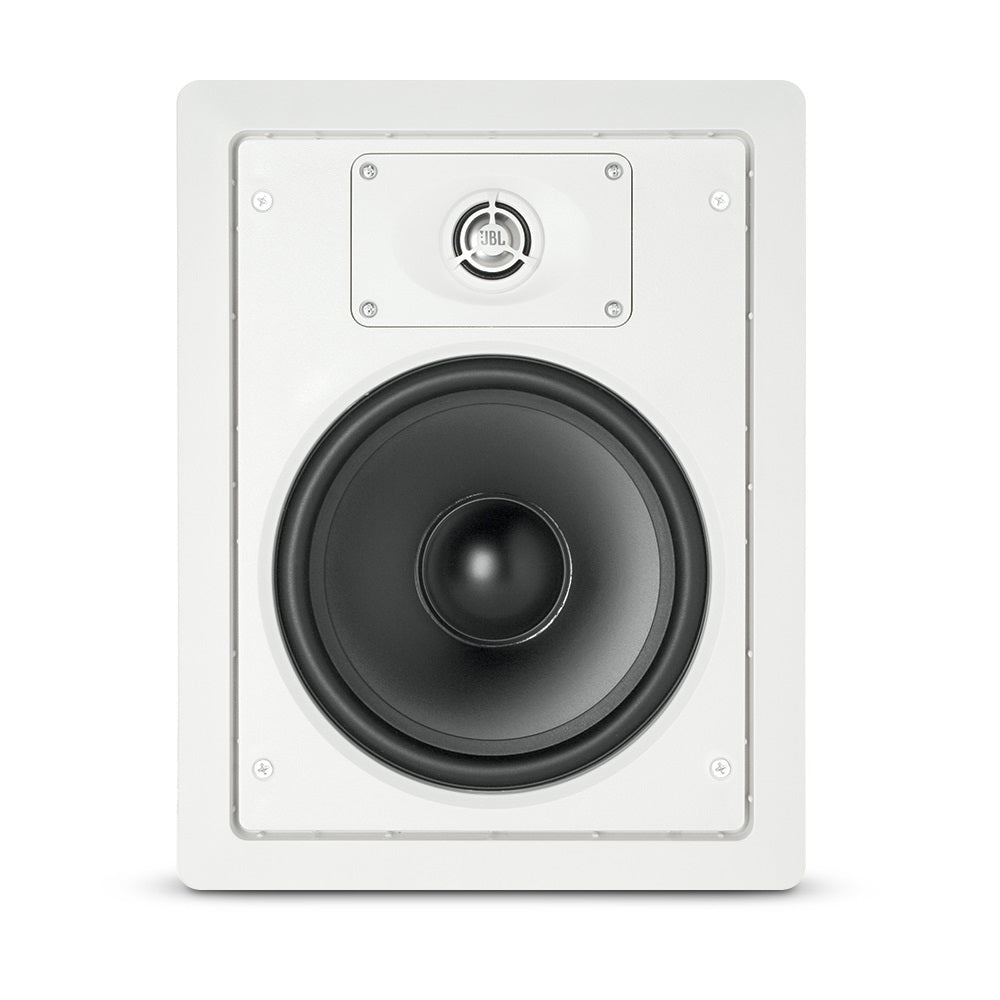

- Advanced Driver Technology: The LF driver features a 200 mm (8 in) polymer-coated aluminum cone and pure butyl rubber surround for accurate and dynamic bass response. The HF driver includes a 25 mm (1 in) pure-titanium dome with cloth suspension on low-diffraction swivel-mount, allowing for -10 degree aimability for precise high-frequency reproduction.
- Optimized Crossover Network: The 2nd order Low Pass to the woofer and 2nd order High Pass to the tweeter ensure seamless integration between the drivers, delivering balanced and natural sound.
- Easy Installation: The in-wall speaker comes with a screw-down Euroblock-type connector for simple and secure wiring connections, accommodating wire sizes up to 14 AWG (1.5 mm)2.
- Optimum Air Cavity: To achieve the best performance, the speaker is designed for an air cavity behind it, ranging from 40 to 80 liters (1.4 to 2.8 cu ft).
- Compact and Discreet: With outside dimensions of 334 x 257 x 110 mm (13.1 x 10.1 x 4.3 in), and a mere 102 mm (4.0 in) front of wall to back of speaker, this in-wall speaker stays inconspicuous while delivering impressive sound quality.
Premium Sound, Concealed Elegance

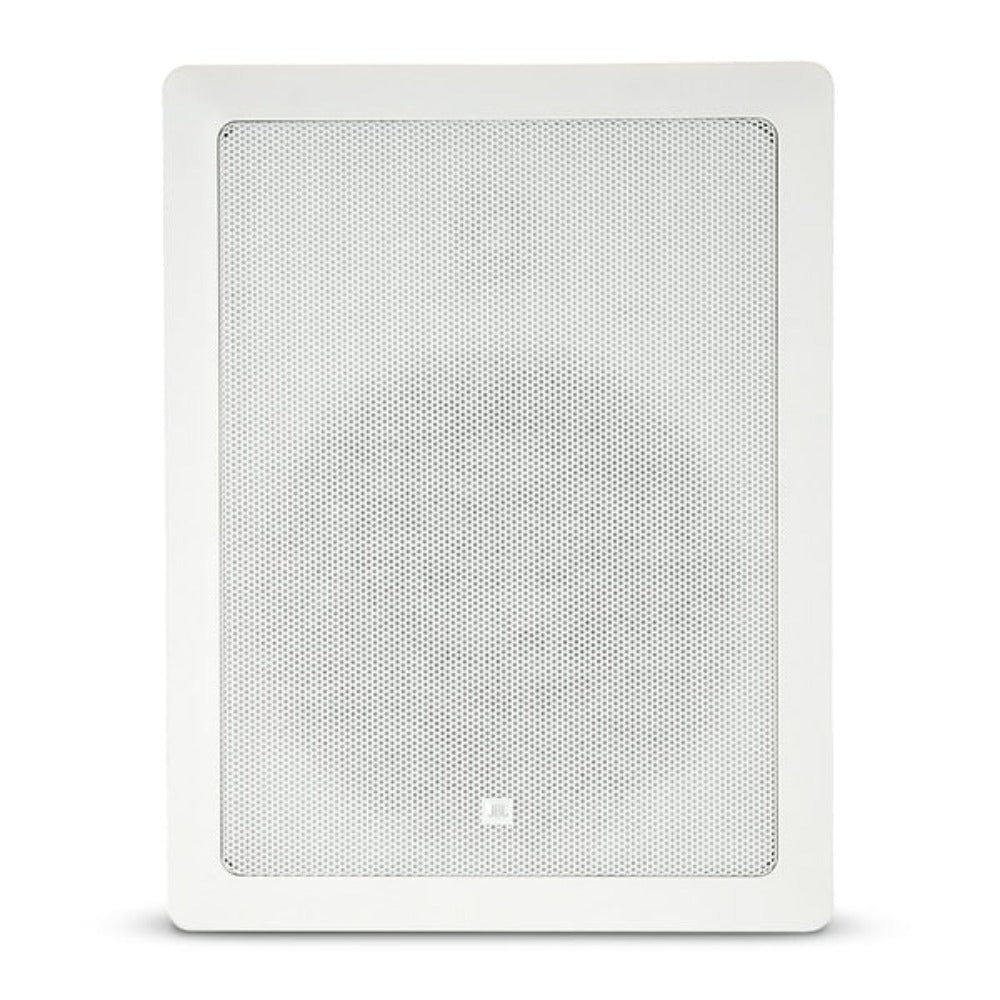

Elevate your audio experience with the JBL Control Series In Wall Speaker C128W in White. Crafted to deliver exceptional sound quality without occupying valuable floor space, this in-wall speaker effortlessly blends into your decor while providing powerful audio performance. With its wide frequency range, advanced driver technology, and optimized crossover network, the JBL Control C128W ensures that you hear every nuance of your favorite music or movies. Whether you're creating an immersive home theater or a multi-room audio system, this in-wall speaker will fill your space with clear and vibrant sound.
Specifications
| Specification | Value |
|---|---|
| Frequency Range | 38 Hz - 20 kHz (-10 dB) |
| Power Rating | 200 W Peak / 100 W Continuous Program Power / 50W Continuous Pink Noise |
| Sensitivity | 90 dB SPL |
| Coverage Angle | 180°H x 160°V |
| Impedance | 8 ohms |
| Drivers | LF: 200 mm (8 in) polymer-coated aluminum cone, pure butyl rubber surround. HF: 25 mm (1 in) pure-titanium dome with cloth suspension on low-diffraction swivel-mount with -10 degree aimability. |
| Input Connectors | Screw-down Euroblock-type connector. Max wire size 14 AWG (1.5 mm)2 |
| Crossover Network | 2nd order Low Pass to the woofer and 2nd order High Pass to the tweeter |
| Optimum Air Cavity Behind Speaker | 40 to 80 liters (1.4 to 2.8 cu ft) |
| Outside Dimensions (H x W x D) | 334 x 257 x 110 mm (13.1 x 10.1 x 4.3 in), 102 mm (4.0 in) front of wall to back of speaker |
Elevate your audio experience with the JBL Control Series In Wall Speaker C128W in White. Crafted to deliver exceptional sound quality without occupying valuable floor space, this in-wall speaker effortlessly blends into your decor while providing powerful audio performance. With its wide frequency range, advanced driver technology, and optimized crossover network, the JBL Control C128W ensures that you hear every nuance of your favorite music or movies. Whether you're creating an immersive home theater or a multi-room audio system, this in-wall speaker will fill your space with clear and vibrant sound.
